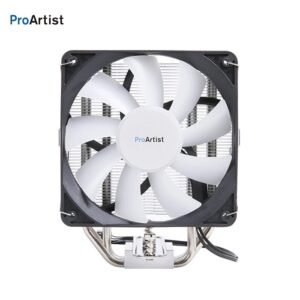

PROARTIST BASIC3 B3 CPU COOLER

AMD platform CPU cooler
Model: B3
specification
Air volume (CFM): 72CFM±10%
Noise dB(A): 27dB(A)
Radiator size: 120x48x153(mm)±2mm
Fan speed (RPM): 1500RPM±10%
Power interface: 4pin
Heat sink material: aluminum sheet + copper tube
Radiator height: 153mm
Cooling method: air cooling
Fan size: 120x120x25 (mm)
Voltage: 12V
packing list:
Radiator body x1, fan x1, fastener bag x1, manual x1, warranty card x1

Heat sink specifications

Body size: 120x48x153 (mm) soil 2mm
Number of heat pipes: 4 heat pipes
Body weight: 475g soil 5%
Heat pipe material: copper
Support platform: 115X/1200/AM4
Fin material: aluminum
Fan specifications:
Fan size: 120x120x25 (mm)
Input current: 0.23A ± 10%
Fan weight: 138g soil 10%
Input voltage: 12V
Fan air volume: 72CFM soil 10%
Input power: 2.76W±10%
Fan pressure: 1.8mm/H2O+10%
Full load speed: 1500RPM ± 10%
Fan noise: 27dB(A)
Bearing type: MHDB
Warranty time: 1 year
Executive standard: GB4943.1-2011

Heat pipe direct contact process

165w heat dissipation design
Large air volume luminous fan

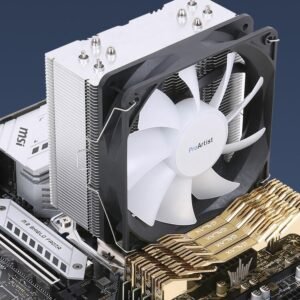

Good compatibility

In most ATX motherboards can be compatible with 4 roots of memory
Does not block the memory light

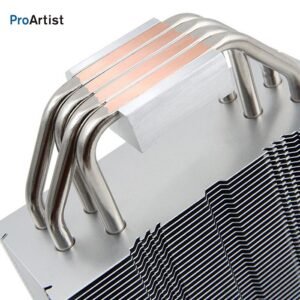

Composite heat pipe

A single theoretical heat transfer can reach 42W
Surface nickel plating treatment is not easy to oxidize

Heat pipe direct contact process

Flat bottom treatment.
Fits AM4 CPU surface better

Stainless steel bracket

Easy installation design
No need to “make miracles vigorously””

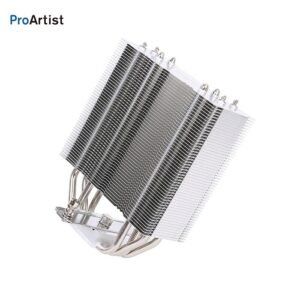

Through the Fin process

51 fins
About 5300 square centimeters of heat dissipation area
