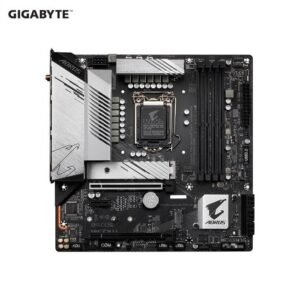

B560M AORUS PRO
1 DisplayPort
2 HDMI
3 Rear USB 3.2 Gen2x2 Type-C®
4 Intel 2.5G GbE LAN
5 Advanced Thermal Design
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- 5 W/mK Thermal Conductivity Pad
- 1* M.2 Connectors with Thermal Guard
- Integrated IO Shield
6 2* M.2 Connectors
- 1*PCIe 4.0 x4 M.2
- 1*PCIe 3.0 x4 M.2
7 AMP-UP Audio
- Audio Noise Guard
- High-End Audio Capacitor
- Nichicon MW Capacitors
8 Q-FLASH Onboard Button
9 8 Solid pin CPU Power Connector
10 Direct 12+1 Phase Digital Power Design with DrMOS
- 50A DrMOS
- Premium Choke and Capacitor
- 6 layer PCB
- PCIe 4.0 Ready PCB
- 2X Copper PCB
11 24 pin ATX Power Connector
12 Supports 11th Gen. Intel® Core™ Processors
13 Dual Channel DDR4, 4 DIMMs
14 Front USB3.2 Gen1 Type-C® for Connecting devices
15 Full PCI Express 4.0 Design
- 1*PCIe 4.0 x16 slot
- 1*PCIe 4.0 x4 M.2
16 RGB FUSION 2.0
- Addressable LED Header*2
- RGB LED Header*
12+1 Phases Digital Power Design
Power Architecture
Power Efficiency
DIRECT POWER DESIGN
B560M AORUS motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU.
Thermal Design
Fully Covered MOSFET Heatsink
M.2 Thermal Guard
Smart Fan 6
ADVANCED THERMAL SOLUTION
B560M AORUS uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
XMP 4800+
PCIe 4.0 Hardware Design
2X PCIe 4.0/3.0 x4 M2
PERFORMANCE
With the best quality components and GIGABYTE R&D design capability, the B560M AORUS is a true beast among motherboards.
Intel 2.5GbE LAN Onboard
USB 3.2 Gen2x2 TYPE-C
Front USB3.2 Gen1 Type-C®
NEXT GENERATION CONNECTIVITY
Audio
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
The below photos are for reference only.
Audio Noise Guard with LED Trace Path Lighting
High-End Audio Components
RGB FUSION
RGB FUSION Software
RGB FUSION APP
DEFINITIVE AESTHETICS
B560M AORUS PRO features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
Q-Flash Plus
PCIe Armor
GIGABYTE Patented Double Locking Bracket
Solid Pin
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the B560M AORUS motherboard and reinforce every slot to make each of them solid and durable.
