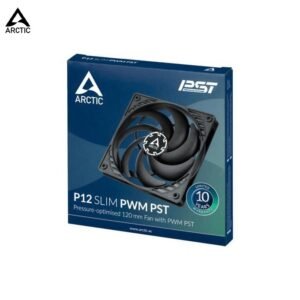

ARCTIC P12 SLIM 120MM PWM PST COOLING FAN

RM65.00

  • OPTIMISED FOR STATIC PRESSURE: Through high static pressure, the fan guarantees efficient cooling, even with increased air resistance; Suitable for use on heat sinks and radiators
  • STRONG COOLING PERFORMANCE: The performance of the P fans has been noticeably increased through numerous improvements, including upgraded engine technology and a newly developed fan design
  • 300 TO 2100 RPM: Thanks to the 4-pin connector, the fan speed can be controlled via PWM PST;This keeps noise to a minimum while at the same time ensuring maximum cooling performance

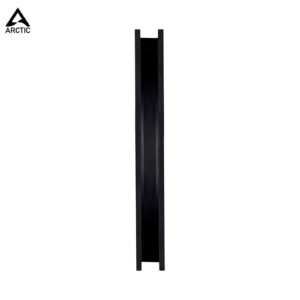

  • LOW INSTALLATION HEIGHT: The P12 SLIM PWM PST has an installation height of only 15 mm, making it suitable for small form factor cases & for installations for which a 25 mm fan does not fit
SKU: 7359 Categories: ,
P12 SLIM PWM PST
Pressure-optimised 120 mm Fan with PWM PST.

OPTIMISED FOR STATIC PRESSURE

During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.

P12_PWM_PST_S02_white_white_EN

STRONG COOLING PERFORMANCE

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind. More information can be found in our FAQ.

P12_PWM_PST_S03_white_white_EN

MORE EFFICIENT TECHNOLOGY

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

P12_PWM_PST_S04_white_white_EN

MAXIMUM QUIETNESS, MINIMUM VIBRATION

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

P12_PWM_PST_S05_white_white_EN

EXTENDED LIFE SPAN

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.

P_Series_PST_Cable

200 TO 1800 RPM REGULATED VIA PWM PST

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

P12_PWM_PST_S07_white_white_EN

HIGH QUALITY BEARING

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

P8_TC_F04

TWO WAY INSTALLATION

– Push warm air out of the case

– Pull cool air into your case

Weight 0.5 kg
Dimensions 15 × 15 × 3 cm
Color

Black

Brand

ARCTIC
